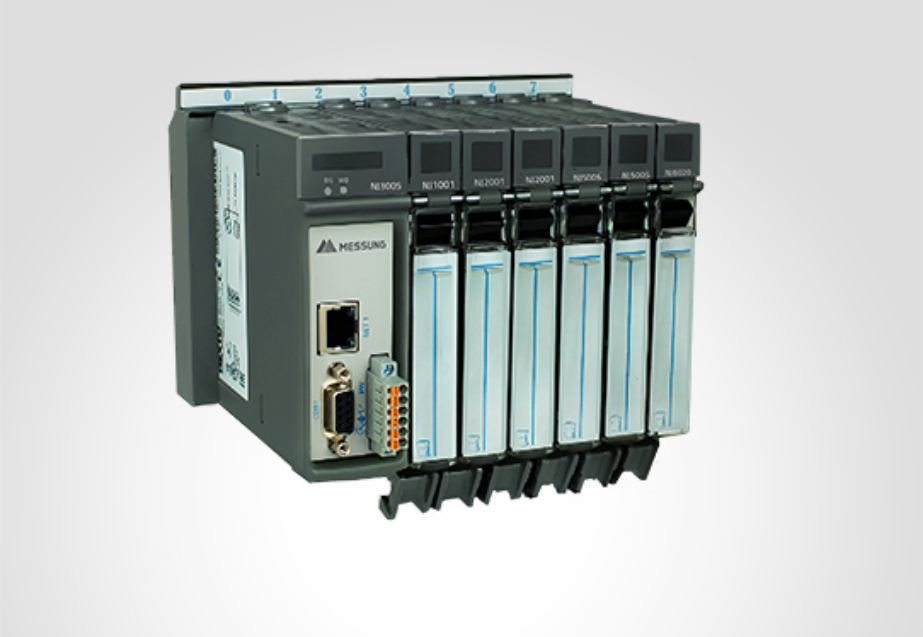

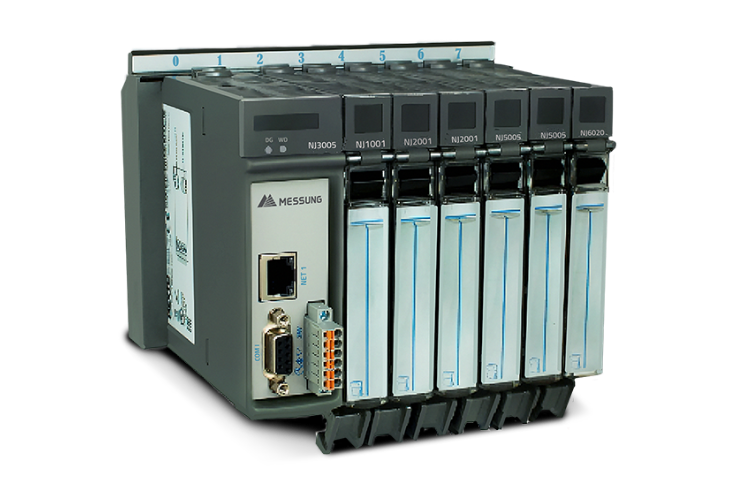

Nx-ERA Jet PLC

From Messung combines compact design with powerful control capabilities, making it perfect for small to medium automation systems. With high-speed processing, flexible I/O’s options, and easy connectivity, Nx-ERA Jet is an efficient solution for OEMs, machine builders, and industry professionals seeking performance and affordability in one smart package.

Nx-ERA Jet PLC

Optimize your control systems with Messung’s NX-ERA JET PLC – designed for small to mid-sized industrial automation applications.

  • Compact design with integrated power supply and I/O’s (NX3003 CPU)
  • Affordable automation with high performance and reliability
  • Modular design: Up to 3 expansion racks and 32 I/O’s modules
  • Built-in serial & Ethernet ports – supports modern protocols
  • Modular & scalable with Nx-ERA series I/O’s modules
  • IEC 61131-3 compliant – supports multiple standard languages
  • Best price-to-value ratio – cost-effective, scalable & affordable in one
Download Brochure
Presentation
Operating Presentation Manual

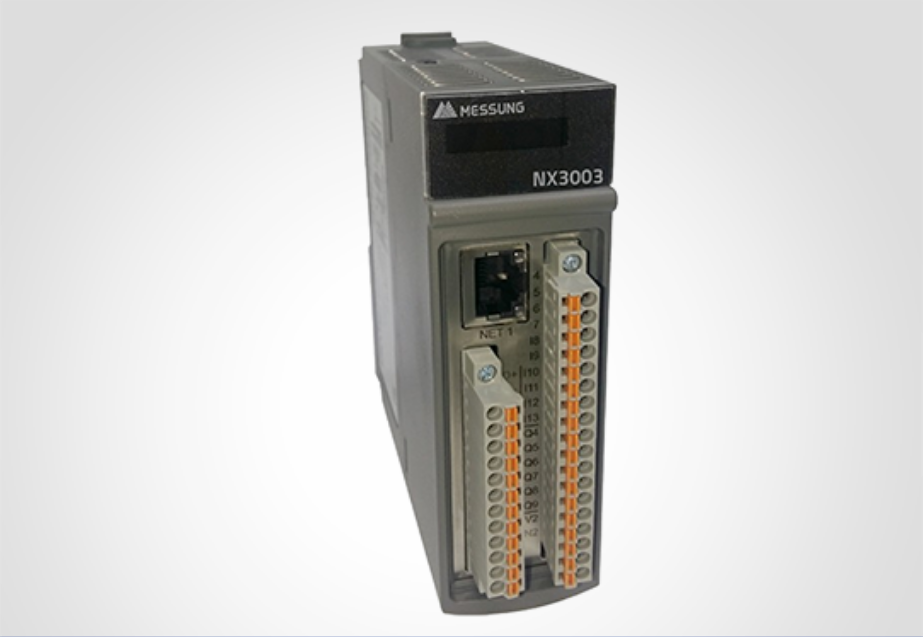

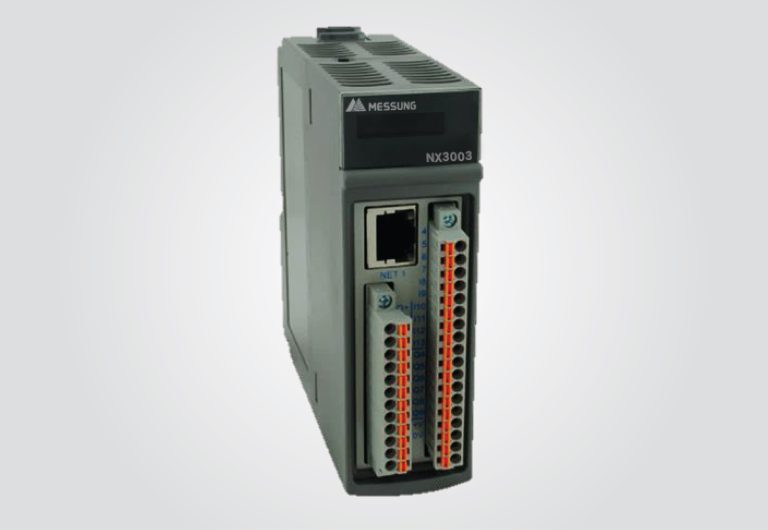

NX 3003

MAIN FEATURES

  • 32 KB each of %I and %Q memory, plus 7.5 KB retain memory
  • High-speed 32-bit CPU with floating point support
  • Built-in serial & Ethernet ports, supports OPC UA/DA, PROFINET, SNMP, EtherNet/IP
  • Integrated power supply, digital I/O, fast counters
  • Real-time clock, and enhanced diagnostics
  • Compact, fanless, and IEC 61131-3 compliant design

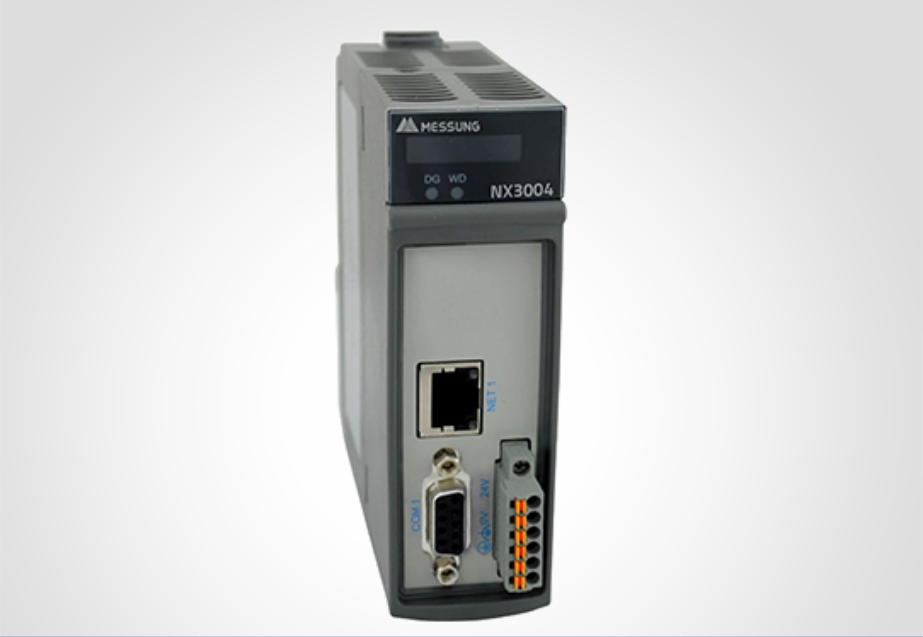

NX 3004

MAIN FEATURES

  • Up to 32 Kbytes of %I points and 32 Kbytes of %Q points
  • Large memory capacity for user application and user data
  • Up to 7.5 Kbytes of retain or persistent memory
  • High-speed 32-bit processing
  • Floating point unit
  • Supports upto 32 I/O modules
  • 1 serial ports
  • 1 Ethernet interfaces at front panel
  • Enhanced diagnostics services
  • System messages log
  • OPC DA/UA, PROFINET, SNMP and EtherNet/IP protocols
  • Support clock synchronization via SNTP
  • Expansion upto 2 racks
  • Integrated power supply
  • One Touch Diag
  • IEC 61131-3 compliant
  • Real-time clock (RTC)
  • Compact and modern design
  • Free of moving parts (fans, active cooling, etc.)

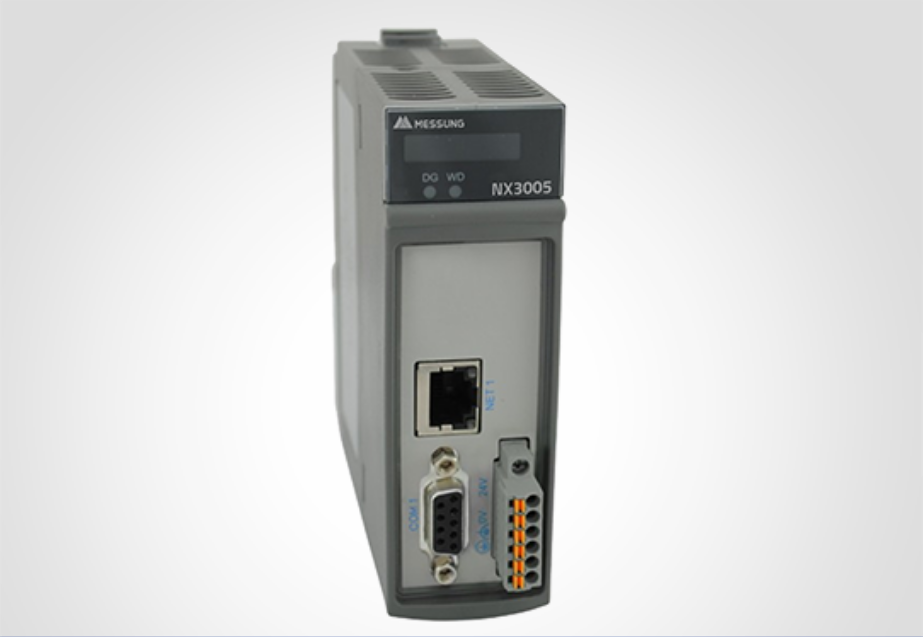

NX 3005

MAIN FEATURES

  • Up to 32 Kbytes of %I points and 32 Kbytes of %Q points
  • Large memory capacity for user application and user data
  • Up to 7.5 Kbytes of retain or persistent memory
  • High-speed 32-bit processing
  • Floating point unit
  • 1 serial ports
  • 1 Ethernet interfaces at front panel
  • Enhanced diagnostics services
  • System messages log
  • OPC DA/UA, IEC 60870-5-104, PROFINET, SNMP and EtherNet/IP protocols
  • Support clock synchronization via SNTP or via IEC 60870-5-104
  • Web server features
  • Integrated power supply
  • Support upto 64 I/O modules
  • One Touch Diag
  • IEC 61131-3 compliant
  • Real-time clock (RTC)
  • Compact and modern design
  • Free of moving parts (fans, active cooling, etc.)

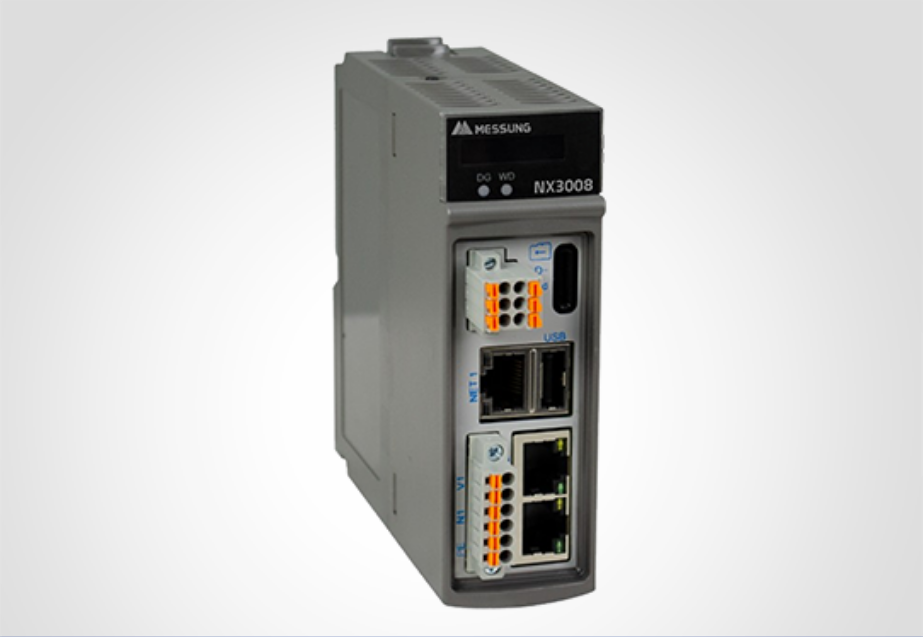

NX 3008

MAIN FEATURES

  • Up to 64 Kbytes of %I points and 64 Kbytes of %Q points
  • Large memory capacity for user application and user data
  • Up to 1 Mbytes of retain or persistent memory
  • High-speed ARM 64-bit processing
  • 3 Ethernet interfaces
  • 1 micro SD card interface
  • 1 USB 2.0 host interface
  • Support upto 128 I/O modules
  • 1 RS-485 serial interface
  • 1 CAN interface with CANopen and SAE J-1939 protocols
  • MODBUS, OPC DA/UA, PROFINET, EtherCAT, SNMP and EtherNet/IP Protocols
  • Support clock synchronization via SNTP
  • Web server features
  • User web pages (Webvisu)
  • Integrated power supply (With support for NX8000)
  • One Touch Diag
  • IEC 61131-3 compliant
  • Real-time clock (RTC)
  • Compact and modern design
  • Free of moving parts (fans, active cooling, etc.)
Datasheet

Nx ERA Jet I/O Modules

NJ 1001
Datasheet
NJ 6000
Datasheet
NJ 6010
Datasheet
NJ 6020
Datasheet
NJ 2001
Datasheet
NJ 6100
Datasheet

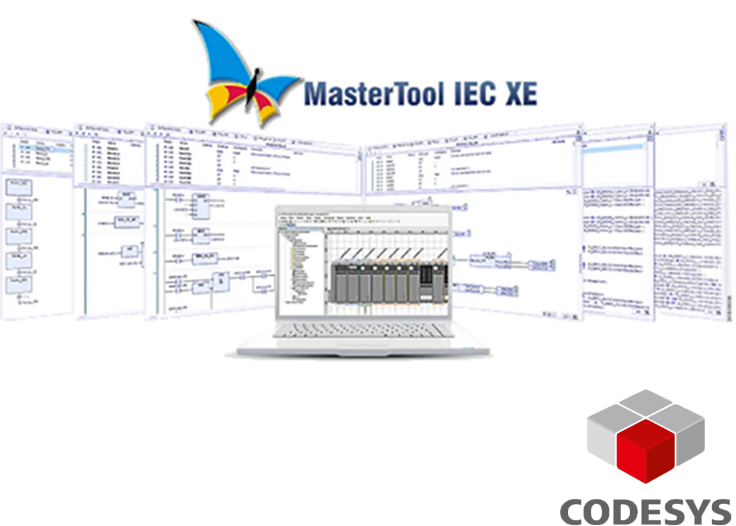

MasterTool IEC XE Programming Software

MasterTool IEC XE – All-in-One PLC Programming Software

  • Supports IEC 61131-3 programming (ST, FBD, LD, SFC, CFC, IL)
  • Use multiple languages in one project for greater flexibility
  • Integrated programming, debugging, simulation, and configuration
  • Built-in fieldbus configuration – no extra software needed
  • Real-time simulation to test and validate applications before deployment
  • IP Protection to secure your intellectual property with password access
  • Secure PLC Login to prevent unauthorized changes or access
  • Logic & Module Printing for generating detailed project reports
  • Enhanced project verification to check syntax, module placement, and more
  • Real-time debugging with breakpoints, variable tracking, and step-by-step testing
Download Brochure
Presentation
Operating Presentation Manual

NX-ERA PREMIUM

Know More

NX-ERA JET

Know More

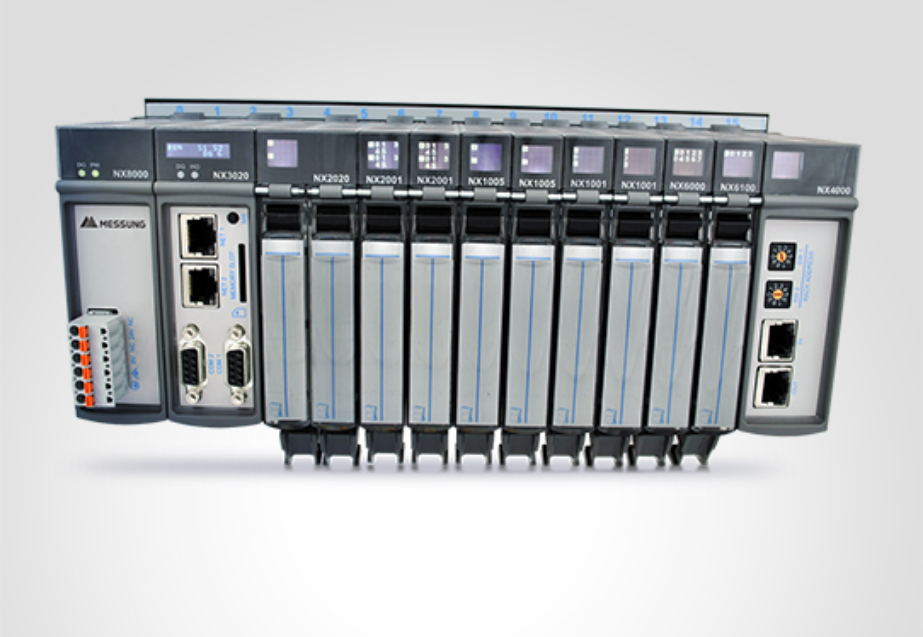

NX-ERA XPRESS
