XMPS-2000 PLC programming software banner with an automated production line

Features of XMPS-2000 Software

Feature 01: Windows utility

A Windows-based
utility

Feature 02: User-friendly environment

User friendly environment for
better experience with software tools

Feature 03: Flexible PLC programming

Programming flexibility making it
compatible with varied range of application

Feature 04: Ladder programming

Standard Programming Language
LADDER

Feature 05: Online runtime diagnostics

Online diagnostics functionality for
runtime status

Feature 06: XMPRO-10 PLC programming

XMPRO-10 PLC Programming by powerful yet intuitive XMPS 2000 software.

Messung XMPS-2000 software graphic
Messung XMPS-2000 software graphic

• CPU & IO Modules Hardware configuration
• Supports ladder programming languages ( LD )
• Logic Blocks : Subroutines that can be called in Main block.
• Monitor Table: User defined Tags, Communication Variables and Watch
window for real time monitoring field values of discrete and analog IOs.
• Online monitoring of Ladder program and generation of Cross
references
• “Force of value” possible during program testing
• User Library: User defined function blocks for customised tasks or
specific applications.

• Task: Supports cyclic program execution , however I/O
interrupt, timer interrupt and external interrupt shall be
available in forthcoming software versions
• User friendly configuration communication protocols
MODBUS TCP & RTU
• Simple way to configure IO’s in the software
• System generated IO addresses
• Online hardware diagnostics (CPU,IO ,Com ports etc.. status )
• RTC (Real Time Clock) accessible through software
• Availability of Standard Data types and Instruction sets
• Upload/Download of user program through Ethernet port

XMPS-2000 system configuration management screen

System Configuration Management

  • Selection of XMPRO CPU, Local & Remote IO expansion module
  • Display of total IO count
  •  Communication ports parameterisation

Hardware Selection Visualisation

  •  Hardware configuration can be displayed Of the Selected CPU’s & IO modules
  •  Parameters of each module can be directly configured and viewed
  • IO device range can be specified by the user can also be viewed
XMPS-2000 hardware selection screen for PLC CPU and I/O modules
XMPS-2000 I/O configuration screen

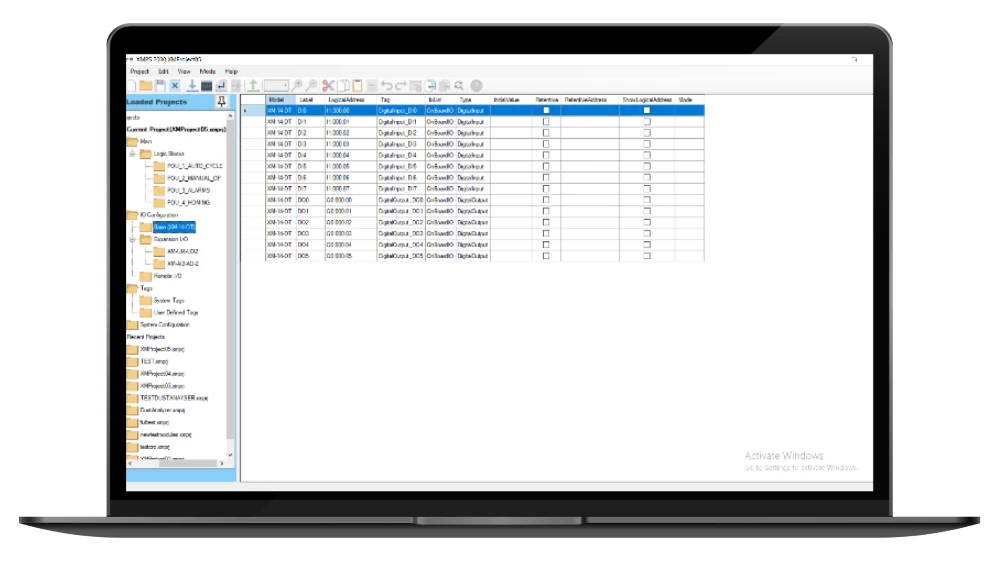

IO Configuration

  • IO assignment for Onboard as well as for expansion modules
    and Remote IO modules.
  • Mode selection for Analog Inputs and Outputs
  • System generated IO address

Program Structure

  • Toolbar: Short cuts to ladder elements and instructions
  • Project Management Window: Project File Creation
  • Main Block, Logic Blocks, user defined function blocks, IO Configuration,
    Tags (System + User defined),System Configuration (Ethernet,RS485)
  • Recent projects can be opened
  • Program Edit window: standard ladder format programming.
  • Complier window : Display of errors if any
  • Online monitor window: Real time monitoring of project,
    forcing values to variables.
  • Watch window : User selected variables
XMPS-2000 program structure and ladder programming screen
