Nx-ERA Xpress PLC

Offers a smart balance of performance and affordability for basic automation needs. With compact design, user-friendly programming and dependable control capabilities, it’s ideal for small machines, utilities and applications where space, budget and simplicity are key considerations.

NX-ERA XPRESS

NX-ERA Xpress PLC –Compact Cost effective, feature rich PLC.

Messung’s NX-ERA Xpress PLC offers powerful performance for small machines and processes with Industry 4.0 capabilities.

  • Available Models: XP300, XP315, XP325, XP340, XP350
  • XP 300: 16 digital inputs/outputs, 1 Ethernet, 1 RS-485, 1 USB, 1 CAN port
  • XP315: Includes RTD & analog inputs
  • XP325/XP340: 4 analog outputs, XP340 adds WebServer for remote monitoring
  • XP350: Adds Motion Control (PLCopen FBs, CAM editor)
  • CODESYS platform & free MasterTool IEC XE programming software
Download Brochure
Presentation
Operating Presentation Manual

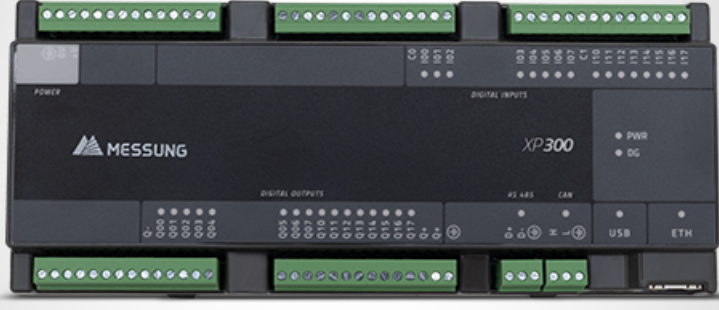

NX-ERA XPRESS 300

NX-ERA XPRESS- Compact, Cost effective, feature rich PLC.
Messung’s NX-ERA PLC Offers powerful performance for small and mid Machines.

Basic Xpress 300 Offers:
  • 16 Digital input 16 Digital output 4HSC , 2PTO
  • 10/100 Mbps Ethernet interface with protocols like
  • OPC UA, EtherNet/IP, PROFINET, MODBUS and MQTT
  • CAN interface: I/O’s expansion through CANopen
  • USB Host port
  • LEDs for inputs/outputs state indication and diagnostics
  • Real-time clock (RTC)

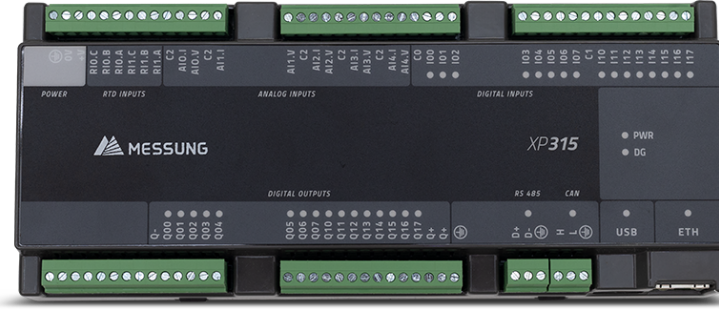

NX-ERA XPRESS 315

NX-ERA XPRESS- Compact, Cost effective, feature rich.
Messung’s NX-ERA PLC Offer powerful performance for small and mid Machines.

In addition to Basic Xpress 300, Xpress 315 Offers:
  • Built-in 4 Analog inputs and 2 RTD inputs
  • 12 bit Resolution
  • Can be configured for Voltage OR Current type
  • RTD inputs enables to directly measure Temperature
  • Built-in PID block on Codesys Technology Platform

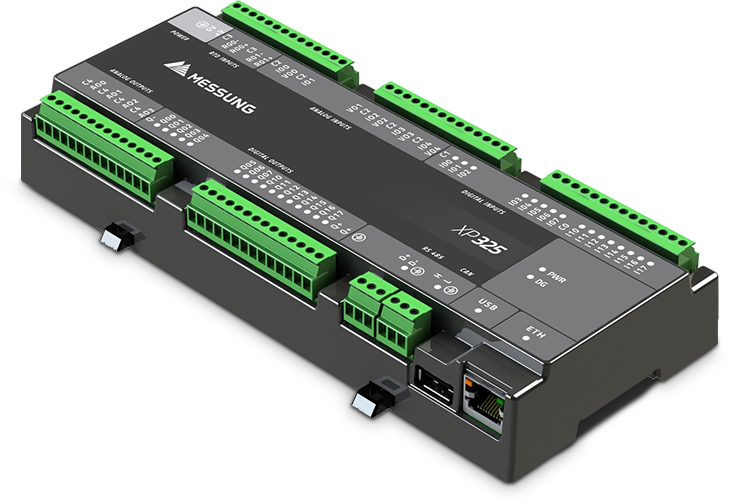

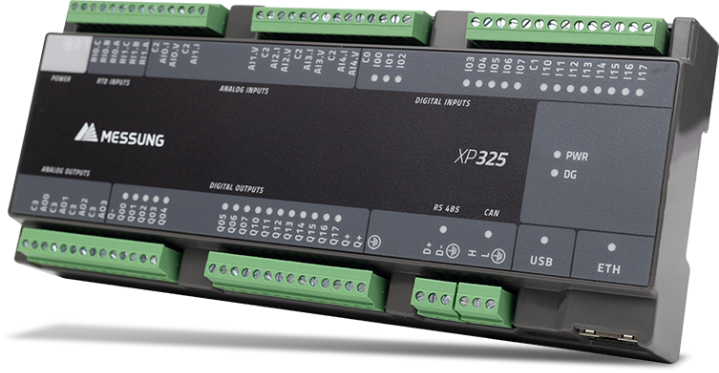

NX-ERA XPRESS 325

NX-ERA XPRESS- Compact, Cost effective, feature rich.
Messung’s NX-ERA PLC Offer powerful performance for small and mid Machines.

In addition to Basic Xpress 300, Xpress 325 Offers:
  • Built-in 4 Analog inputs and 2 RTD inputs
  • 12 bit Resolution
  • Can be configured for Voltage OR Current type
  • RTD inputs enables to directly measure Temperature
  • 2 Analog outputs as Builtin – 12 bit resolution.
  •  Auto tune PID block to control Temperature/Humidity/Flow/Speed on Codesys Technology Platform.

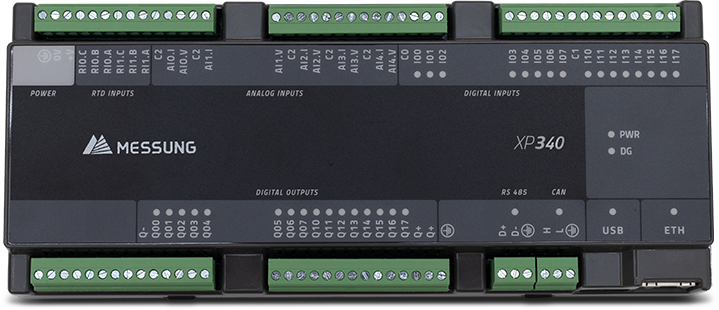

NX-ERA XPRESS 340

NX-ERA XPRESS- Compact, Cost effective, feature rich.
Messung’s NX-ERA PLC Offer powerful performance for small and mid Machines.

In addition to Basic Xpress 300, Xpress 340 Offers:
  • Built-in 4 Analog inputs and 2 RTD inputs
  • Built in 2 Analog outputs
  • RTD inputs enables to directly measure Temperature
  • Auto tune PID blocks on Codesys Technology Platform
  • User Web Pages can be designed in CPU memory
  • Supporting FTP, VPN, Firewall
  • Programme Memory enhanced to 8MB, Variable memory to 6MB

NX-ERA XPRESS 350

NX-ERA XPRESS- Compact, Cost effective, feature rich.
Messung’s NX-ERA PLC Offer powerful performance for small and mid Machines.

In addition to Basic Xpress 300, Xpress 350 Offers:
  • Built-in 4 Analog inputs and 2 RTD inputs
  • Built in 2 Analog outputs
  • RTD inputs enables to directly measure Temperature
  • Auto tune PID blocks on Codesys Technology Platform
  • User Web Pages can be designed in CPU memory
  • Supporting FTP, VPN, Firewall
  • Programme Memory enhanced to 8MB, Variable memory to 6MB
  • Motion Control with Codesys Soft Motion library on EtherCAT
  • PLC open Motion Control Part 1 function block support

MasterTool IEC XE Programming Software

MasterTool IEC XE – All-in-One PLC Programming Software

  • Supports IEC 61131-3 programming (ST, FBD, LD, SFC, CFC, IL)
  • Use multiple languages in one project for greater flexibility
  • Integrated programming, debugging, simulation, and configuration
  • Built-in fieldbus configuration – no extra software needed
  • Real-time simulation to test and validate applications before deployment
  • IP Protection to secure your intellectual property with password access
  • Secure PLC Login to prevent unauthorized changes or access
  • Logic & Module Printing for generating detailed project reports
  • Enhanced project verification to check syntax, module placement, and more
  • Real-time debugging with breakpoints, variable tracking, and step-by-step testing
