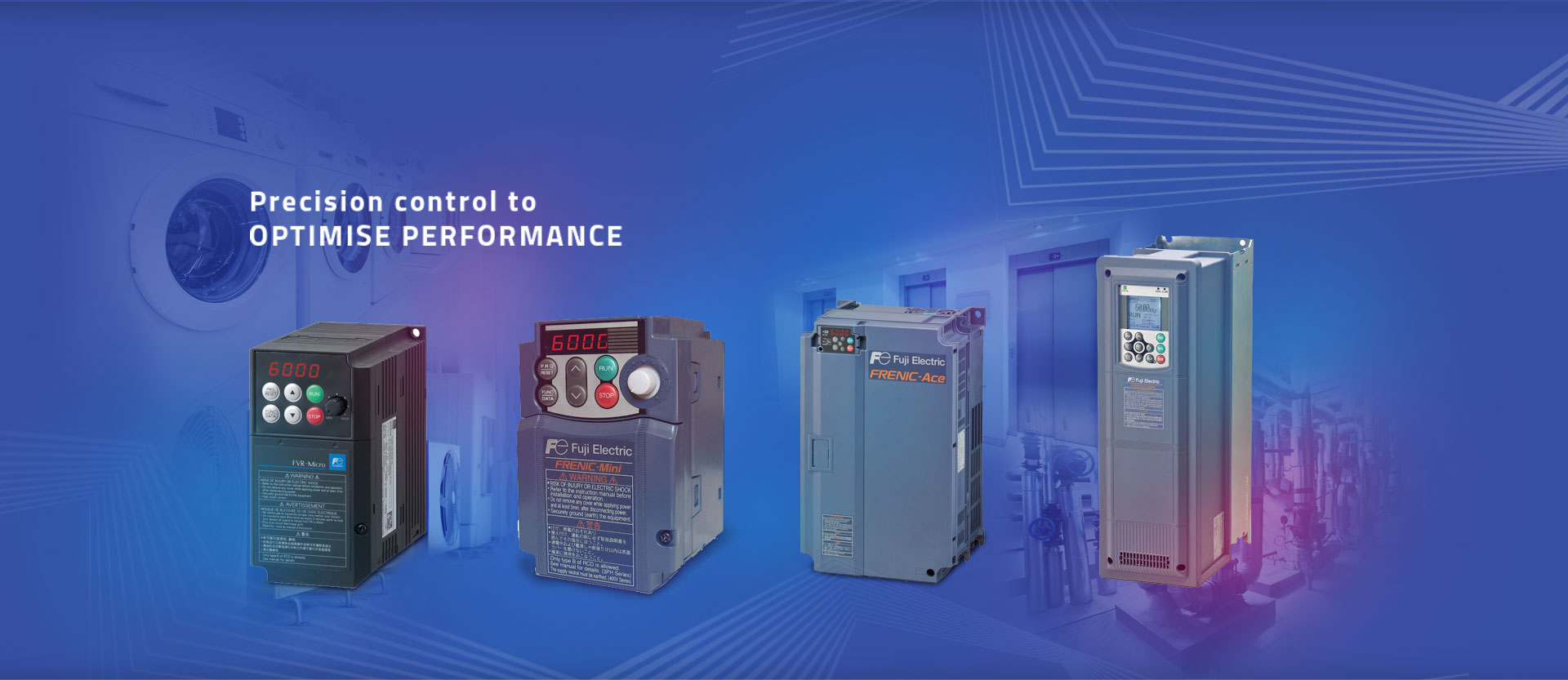

Messung Industrial Automation & Controls offers a wide range of simple and high-performance Variable Frequency Drives (VFDs) from Fuji Electric.

The VFD range includes standard and specialised models that can maximise performance for each application such as fan & pump, and crane application.

These VFDs have an environmentally-friendly long-life design (10 years), are compliant with RoHS directives, and can be used in most types of applications – from fans and pumps to specialised machinery.

FRENIC MICRO

Range: 400V type, 0.4KW to 3.7KW , 200V Single phase 0.4KW to 2.2KW

Starting Torque: 200% 0.5sec, 150% 60sec

Functions:
Digital inputs: 5 , Digital Output: 1, Relay output:1, Analog input:2, Analog output:1,

Braking Transistor: Built-in

Serial Port: Built-in RJ45

Display: On board 7 segment , 4-character

FRENIC - NEW MINI

Range: 400V type, 0.4KW to 15KW , 200V Single phase 0.4KW to 2.2KW

Starting Torque: 200% 0.5sec, 150% 60sec

Performance: Dynamic Torque Vector Control System, Fastest CPU in Class,Interface of IM & PMSM Motor.

Functions: PID Control, Interface Induction and PMSM Motor, Digital inputs: 5 , Digital Output: 1, Relay output:1, Analog input:2, Analog output:1,

Braking Transistor: Built-in

Serial Port: Built-in RJ45, Modbus-RTU

Display: On board 7 segment , 4-character

FRENIC - ACE

Range: 400V type, 0.4KW to 220KW

Starting Torque: 200% 0.5sec, 150% 60sec

Performance: Open and Close Loop Vector Control, Interface of IM & PMSM Motor.

Functions: PID Control, Interface Induction and PMSM Motor, Customised logic 200steps, 3-Option slots Digital inputs: 7, Digital Output: 2, Relay output:1, Analog input:2, Analog output:1, Removable terminal Block.

Braking Transistor: Built-in till22KW, optional for above.

Serial Port: Built-in RJ45, Modbus-RTU

Display: Removable 7 segment , 4-character

Option Cards: PG interface card, Device Net, CC-Link, 24VDC Aux control supply option, Ethernet/IP, Profinet-RT, Profibus-DP

FRENIC - HVAC

Range: 400V type, 0.4KW to 37KW (700KW*)

Starting Torque: 110% 60sec, Complying IEC-61800-2

EMC Filter: Built-in complying IEC/EN 61800-3 (Category-2)

DC Reactor: Built-in complying IEC/EN 61000-3-2 and complying IEC/EN 61000-3-12

Enclosure: IEC/EN 60529 , IP21/IP55

HVAC Functions: 4-PID Control, Linearisation, Wet Bulb, Filter clogging, Speed Pickup, Fire mode…

Digital inputs: 9, Digital Output: 4, Relay output:2, Analog input:3, Analog output:2, Emergency:2Removable terminal Block.

Serial Protocols: USB, RS-485 –Built-in selectable Modbus RTU, BacNET MS/TP, Metasys-N2

Optional Protocols: Device net, Can-open, Lon works, Profibus DP, Ethernet

Display: Removable LCD Graphic display, multi-language support, RTC, Unit Conversion, Password
